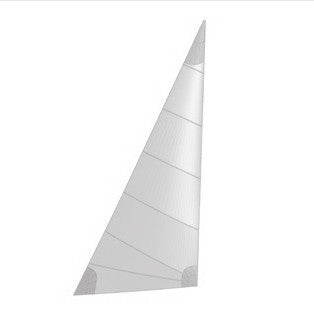

Storm Trysail - 14.0
Storm Trysail - 14.0
Item Number | Reefs | Battens | Price | Availability | Cart |
---|---|---|---|---|---|
TR14.00-OR | Orange | $485.00 | Special Order | Add To Order | |
TR14.00-WH | White | $430.00 | Special Order | Add To Order |
Couldn't load pickup availability
Description
Description

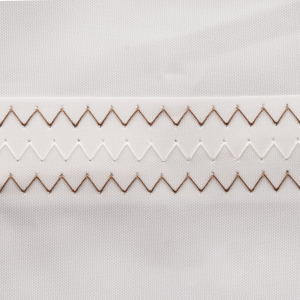

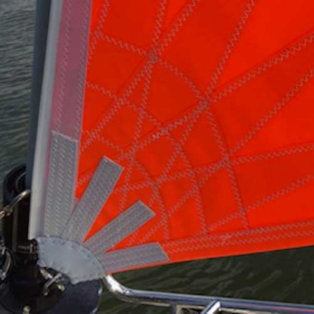

Storm sails are built to Offshore Specifications with triple stitching, webbing reinforcements, extra heavy corner patches with leather and leech lines. High visibility orange head patches are available on the cruising version or solid orange sails to comply with race rules.
We stock Storm Trysails in White and Orange. The luff and foot will be delivered with grommets so you can add your own custom hardware. Special sizes may also be custom ordered.
Technical Details
Technical Details
Measuring Sails
Measuring Sails
Warranty and Returns
Warranty and Returns
Product Specifications
Luff: 14.0 Feet
Leech: 16.0 Feet
Foot: 7.0 Feet
Luff Type:
Foot Type:
Material: 8.0 ounce Dacron






Size Chart
STORM JIB | |||||||
---|---|---|---|---|---|---|---|
Boat Size | Code | Sail Type | Luff | Leech | Foot | Cloth (oz) | Sq. Ft. |
20-23 | SJ12.0 | Storm Jib | 12,0 | 9,0 | 6,0 | 6 | 28 |
24-26 | SJ14.0 | Storm Jib | 14,0 | 10,5 | 6,9 | 7 | 36 |
26-28 | SJ16.0 | Storm Jib | 16,0 | 12,0 | 7,6 | 8 | 48 |
29-32 | SJ18.0 | Storm Jib | 18,0 | 14,0 | 8,6 | 8 | 62 |
33-35 | SJ20.0 | Storm Jib | 20,0 | 16,0 | 9,6 | 8 | 77 |
35-39 | SJ22.0 | Storm Jib | 22,0 | 17,5 | 9,6 | 8 | 86 |
40-43 | SJ24.0 | Storm Jib | 24,0 | 19,0 | 10,3 | 9 | 100 |
44-47 | SJ26.0 | Storm Jib | 26,0 | 20,5 | 11,0 | 9 | 115 |
48-50 | SJ28.0 | Storm Jib | 28,0 | 22,5 | 11,9 | 9 | 132 |
50-55 | SJ30.0 | Storm Jib | 30,0 | 23,6 | 12,6 | 9 | 145 |
GALESAIL | |||||||
---|---|---|---|---|---|---|---|
Boat Size | Code | Sail Type | Luff | Leech | Foot | Cloth (oz) | Sq. Ft. |
20-30 | GS12.0 | Gale Sail-Jib | 12,0 | 8,0 | 5,5 | 7 | 30 |
30-35 | GS16.0 | Gale Sail-Jib | 16,0 | 12,5 | 8,0 | 8 | 60 |
36-41 | GS20.0 | Gale Sail-Jib | 20,0 | 16,0 | 10,0 | 9 | 100 |
42-50 | GS23.0 | Gale Sail-Jib | 23,0 | 18,0 | 12,0 | 9 | 150 |
51-55 | GS31.0 | Gale Sail-Jib | 31,0 | 21,0 | 16,0 | 10 | 200 |
TRYSAILS | |||||||
---|---|---|---|---|---|---|---|
Boat Size | Code | Sail Type | Luff | Leech | Foot | Cloth (oz) | Sq. Ft. |
20-30 | TRI14.0 | Storm Trisail | 14,0 | 16,6 | 7,0 | 8 | 50 |
30-35 | TRI16.0 | Storm Trisail | 16,0 | 19,0 | 8,3 | 8 | 66 |
35-38 | TRI18.0 | Storm Trisail | 18,0 | 21,5 | 9,3 | 9 | 86 |
38-41 | TRI20.0 | Storm Trisail | 20,0 | 23,5 | 10,3 | 9 | 110 |
42-45 | TRI22.0 | Storm Trisail | 22,0 | 25,5 | 11,5 | 9 | 124 |
46-50 | TRI24.0 | Storm Trisail | 24,0 | 29,0 | 12,5 | 9 | 150 |
50-55 | TRI26.0 | Storm Trisail | 26,0 | 30,5 | 13,5 | 10 | 160 |
A-SYMMETRICAL (CRUISING SPINNAKERS) | |||||||
---|---|---|---|---|---|---|---|
Size | Forestay Length | Sail Area (sq ft) | Luff | Leach | Foot | Mid-Girth | Cloth (oz) |
0 | 27.4 - 29.5 | 313,2 | 28,5 | 25,6 | 13,1 | 12,8 | 0,75 |
1 | 29.6 - 31.9 | 387,5 | 30,8 | 28,2 | 14,6 | 25,6 | 0,75 |
2 | 31.8 - 34.3 | 461,7 | 33,1 | 30,2 | 16,4 | 25,6 | 0,75 |
3 | 34.0 - 36.7 | 532,8 | 35,4 | 32,0 | 18,0 | 25,6 | 0,75 |
4 | 36.2 - 39.1 | 613,5 | 37,7 | 34,1 | 29,0 | 18,3 | 0,75 |
5 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
6 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
7 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
8 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
9 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
10 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
11 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
12 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
13 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
14 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
15 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
SYMMETRICAL (SPINNAKERS) | ||||||||
---|---|---|---|---|---|---|---|---|
Size |
Boats "I" Dimension |
Min "J" Dimension | Sail Area(sq ft) | Luff | Leach | Foot | Mid-Girth | Cloth (oz) |
0 | 27.4 - 29.5 | 313,2 | 0 | 28,5 | 25,6 | 13,1 | 12,8 | 0,75 |
1 | 29.6 - 31.9 | 387,5 | 30,8 | 0 | 28,2 | 14,6 | 25,6 | 0,75 |
2 | 31.8 - 34.3 | 461,7 | 0 | 33,1 | 30,2 | 16,4 | 25,6 | 0,75 |
3 | 34.0 - 36.7 | 532,8 | 35,4 | 32,0 | 18,0 | 25,6 | 0,75 | |
4 | 36.2 - 39.1 | 613,5 | 37,7 | 34,1 | 29,0 | 18,3 | 0,75 | |
6 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
7 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
8 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
9 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
10 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
11 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
12 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
13 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
14 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
15 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 | |
15 | 38.7 - 41.8 | 693,1 | 40,4 | 36,8 | 20,2 | 19,4 | 1,5 |
CDI - FLEXIBLE FURLERS | |||||
---|---|---|---|---|---|
Unit | Boat Size | Max Forestay Length | Max. Forestay Diameter | Maximum Turnbuckle | Sail Area |
FF1 | Under 20' | 21' | 1/8" | 1/4" | 90 Sq ft |
FF2 | 20-24 | 29' | 3/6" | 5/16" | 170 Sq ft |
FF4 | 23-27 | 33' | 7/32" | 3/8" | 400 Sq ft |
FF6 | 26-28 | 39' | 1/4" | 3/8" | 400 Sq ft |
FF7 | 27-32 | 47' | 1/4" | 1/2" | 400 Sq ft |
FF9 | 30-36 | 53' | 5/16" | 1/2"( most 5/8") | 900+ Sq ft |
PROFURL | |||||
---|---|---|---|---|---|
Unit | Boat Size | Max Forestay Length | Max. Forestay Diameter | Max Clevis Pin | Sail Area |
C260 | Under 22' | 28' | 3/16" | NA | 160 |
C290 | 22-30" | 40' | 1/4" | 3/8" | 320 |
C320 | 30-36" | 46' | 9/32" | 1/2" | 430 |
C350 | 25-41" | 46' | 5/16" | 1/2" | 59 |
C420 | 40-45" | 60' | 3/8" | 5/8" | 860 |
C430 | 42-55" | 60' | 1/2" | 3/4" | 1075 |
NC32 | 24-34" | 40' | 9/32" | 3/8" | 400 |
LC32 | 28-36" | 46' | 5/16" | 1/2" | 430 |
NC42 | 37-42" | 52' | 3/8" | 5/8" | 760 |
LC42 | 40-50' | 60' | 1/2" | 5/8" | 860" |
